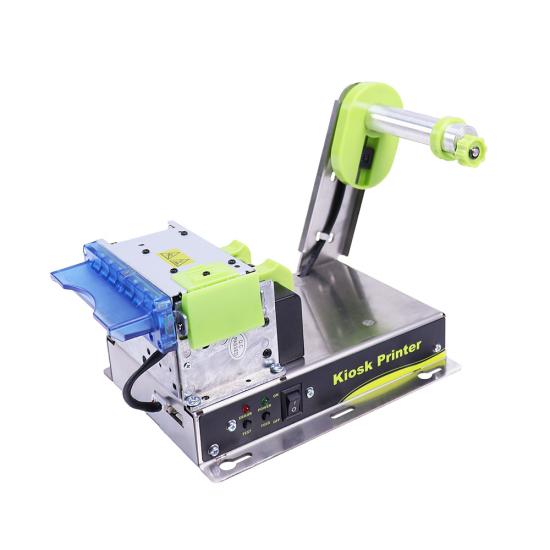

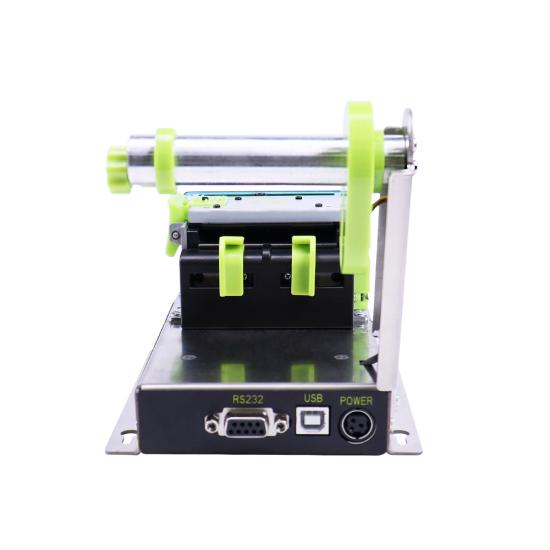

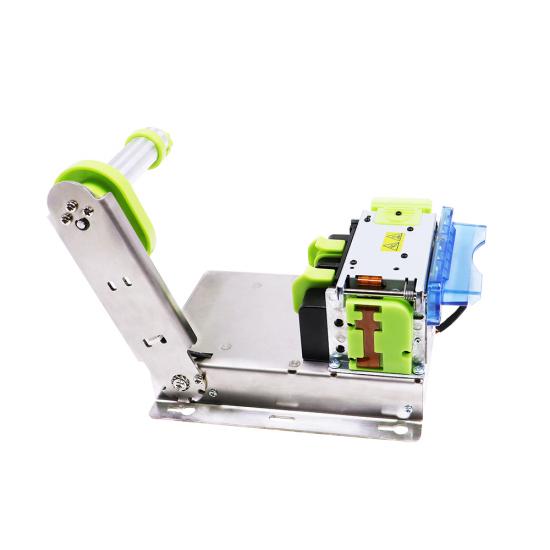

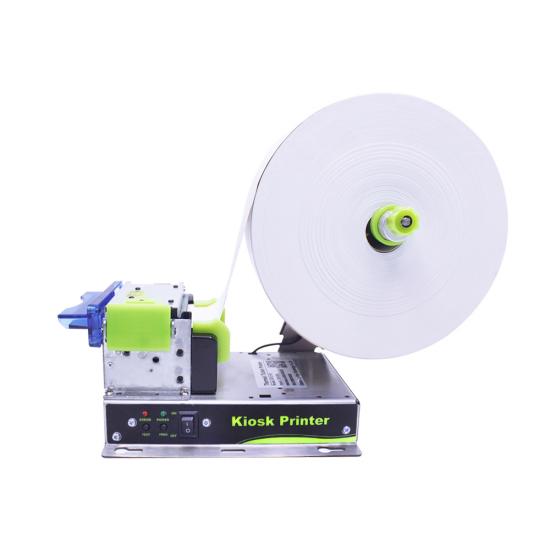

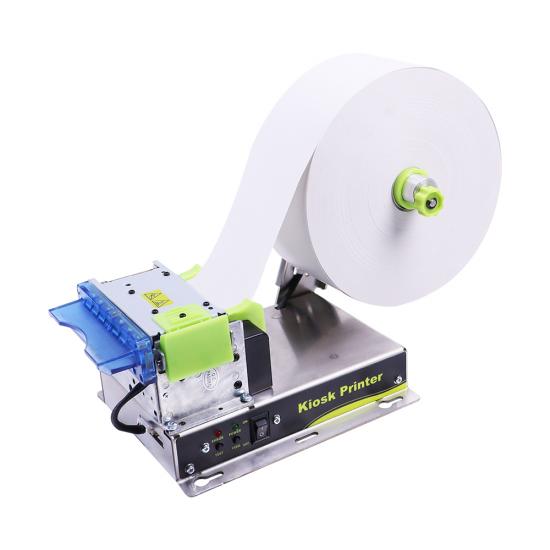

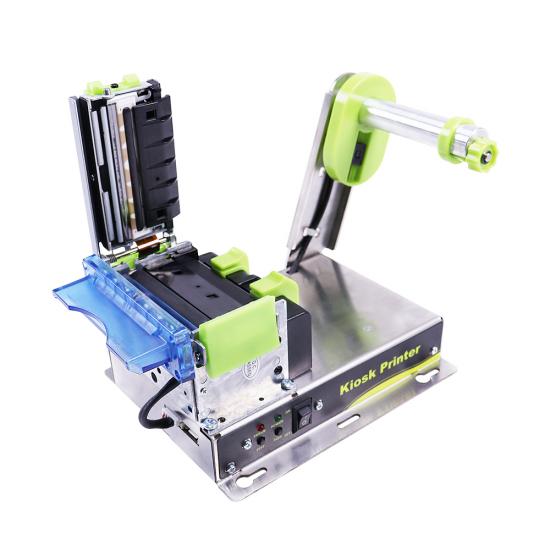

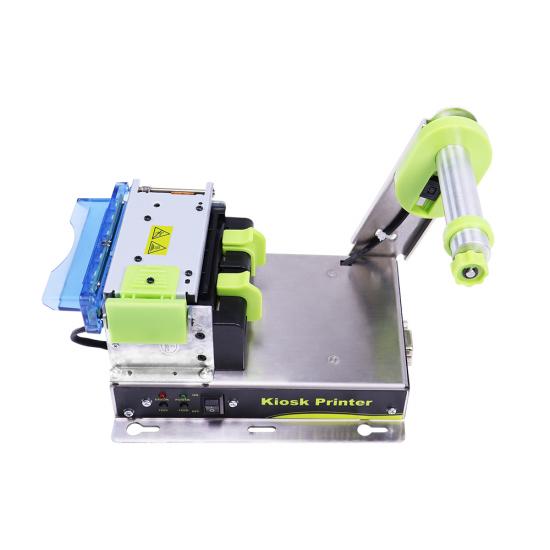

Cashino 2 Inch Kiosk Printer KP-211H Ticket Printer DC 24V,2.5A 250mm/s
Item No.:
KP-211HPayment:
PayPal,Western Union,T/TProduct origin:
Xiamen,ChinaShipping port:
Xiamen,China2" kiosk thermal printer
1.250mm/s high printing speed| Printing parameters | Printing method | Line thermal printing |
| Resolution | 203Dpi | |
| Effective printing width | 48mm/56mm (Max) | |
| Printing speed | 250MM/S | |
| TPH life | 100KM (Max) | |
| Multiple width adjustments | 24/48/58mm | |
| Cutting method | Full/Partial cut | |
| Feed method | Auto feeding | |
| Interface | RS232+USB | |
| Paper roll parameters | Paper roll type | Thermal receipt paper |
| Paper width | 25-58 mm(adjustable) | |
| Paper roll thickness | 0.045-0.125mm（Optional） | |
| Detection function | THP temperature | Temperature sensor |
| Cover opening detection | Micro touch switch | |
| Cutter HOME point detection | ||
| Axis in place | ||
| Automatic paper feeding/paper detection | Reflective photoelectric sensor | |
| Paper near end detector | ||
| Black mark detector | ||
| Seam detection/transmission and reception | Opposing sensor | |
| Paper output detection/presenter | ||
| Power | Input | 110V-220V |
| Output | 24V 2.5A DC±10% | |
| Average current | 2A/2.5A （25% print ratio） | |
| Peak current | 8.5A （100% print ratio） | |
| Character | Character requirements | ASCII 9*17、12*24、 Chinese 24*24 |
| Size | ASCII 9×17, 12×24dots , 24×24dots | |
| Print font | Normal, 1-8 times height and width, reversed, underlined, italicized, bold | |
| 1D | UPC-A，UPC-E，EAN13，EAN8，CODE39，ITF，CODABAR，CODE93，CODE128 | |
| 2D | QRCode,PDF417 | |
| Reliability | Abrasion resistance | 100km (Max) |
| Pulse | 100 million | |
| Cutter life | 1,000,000 cuts | |
| Operation | Pilot lamp | POWER +ERROR LED |
| Button | FEED *1 TEST *1 | |
| Power switch | Ship type switch * 1 | |
| Usage environment | Operating temperature | -5℃~50℃ |
| Using humidity | 20-80%RH（No condensation） | |
| Storage temperature | -20℃-70℃ | |
| Electrostatic protection | Contact discharge 6KV, air discharge 8KV | |
| Storage humidity | 10-90%RH（No condensation） | |
| Physical property | Dimensions | 258L*119.1W*182H mm including paper roll (presenter) |
| 264.3L*141.1W*186H mm including paper roll (with anti-jamming) |
Application:
1.Bank ATM
2.Gaming/lottery machines
3.Car park payment machines
4.Info and multimedia kiosks
5.Currency change
6.Information stands
