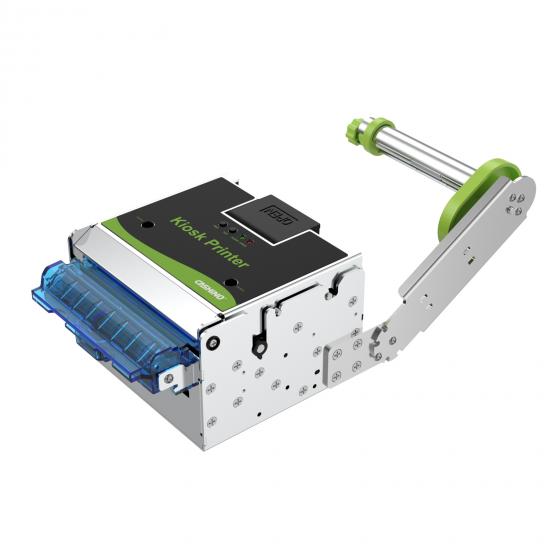

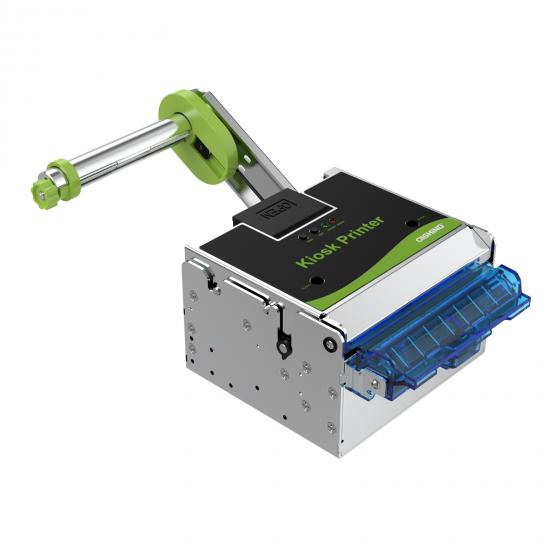

KP-802 3inch Embedded Thermal Ticket Auto Cutter Kiosk Thermal Printer For Betting Kiosk

Print

Print method

Thermal-line dot method

Print dot matrix

640Dots

Resolution

203Dpi

Effective print width(Max)

80mm (Max)

Print speed(Max)

250mm/s (Max)

Print life

100KM (Max)

Various adjustment widths

48-82.5 mm(Adjustable, centered printing)

Cutter method

Full cut/Partial cut

Feed method

Auto paper feeding  (first ticket page

positioning,last ticket printing)

Command Protocol

ESC/POS command set (support page

mode)

Paper

Roll

Spec.

Paper type

Thermal receipt,black mark paper

Paper thickness

0.055-0.09mm(receipt)

0.15mm MAX(label)

outer diameter

150mm（MAX） Outer diameter bracket

45°upward

Inner diameter

25mm

Detection

THP Temperature

Thermistor

Cutter HOME point

detection

Mechanical Sensors

Platen position detection（Cover up）

Auto paper feed/

paper detection

Paper detection (photoelectric sensor)

Paper near end detection

Reflective photoelectric sensor (located on

the paper roll holder)

Paper taken out detection

Photoelectric sensor

Black mark detection

Movable reflective sensor

Gap mark detection

Through-beam sensor (the main sensor needs to be moved to the center for  through-beam)

Power

supply

Input voltage

110V-220V

Output voltage

DC 24V 2A±10%

Average current

2A/2.5A （25%printing rate）

Peak current

10.6 A

Character

Character set

Font A:12x24 Font B:9x17Chinese:24x24

Print front

Normal, 1~8 times of height and width,

highlight, inverse, underline, italic, bold

Barcode

1D code

UPC-A，UPC-E，EAN13，EAN8，

CODE39，ITF，CODABAR，CODE93，

CODE128

2D code

QR Code,PDF417

Reliability

Wear resistance

100km (Max)

Number of pulses

100 million

Cutter life

1 million cuts

Interface

Standard

DC+USB+RS232 three in one cable+LAN

（support DHCP）

Operating

Indicator light

POWER LED +ERROR LED

Button

FEED button*1 TEST button*1

Power switch

Ship type switch*1

Operating

environment

Operating temperature

-10℃~60℃

Operating humidity

20-80%RH（No condensation）

Storage temperature

-20℃-70℃

Electrostatic protection

Contact ±6KV, Air ±8KV

Storage humidity

10-90%RH（No condensation）

Physical

Dimension

132.1x116.6x72.6 mm

（Without paper roll holder）

Weight

1.15KG
